Sampling with Stein Variational Gradient Descent (SVGD)

The SVGD Update Rule¶

Stein Variational Gradient Descent Liu & Wang, 2016 is a particle-based sampling algorithm that begins with samples drawn from an initial reference distribution $q^0$ and iteratively transports them via the SVGD velocity field $\phi$. After enough iterations, the transformed particles form an empirical distribution that closely matches the target.

Formally, at iteration $l\in[0, \dots, L-1]$, the SVGD update rule is:

where $x_i^l$ is the $i$-th particle at iteration $l$, $\epsilon$ is the step-size, $\bar p$ is the unnormalized density, and $\kappa$ is a kernel function, most commonly the RBF kernel.

from svgd.sampler import SVGD
from svgd.distributions import TorchDistribution
from svgd.kernels import RBF
from svgd.kernels.parameters import HeuristicKP
from svgd.lrs import ParameterLR
from svgd.callbacks import Logger

import torch
from torch.distributions import MixtureSameFamily, Categorical, Independent, Normal

import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation

torch.manual_seed(0)

target_distribution = TorchDistribution(
    MixtureSameFamily(
        Categorical(torch.ones(2)),
        Independent(Normal(torch.tensor([[-1.0, 0.0], [1.0, 0.0]]), 1 / 3), 1),
    )
)
initial_distribution = TorchDistribution(Independent(Normal(torch.zeros(2), 1.0), 1))
kernel = RBF(HeuristicKP("median"))
lr = ParameterLR(torch.tensor(0.5))
logger = Logger(log_x=True)
logger.activated = True
svgd = SVGD(
    target_distribution=target_distribution,
    initial_distribution=initial_distribution,
    kernel=kernel,
    lr=lr,
    callbacks=[logger],
)

n_particles = 100
n_steps = 50
x, _, _ = svgd.sample(n_particles=n_particles, n_steps=n_steps)
x = x.detach()

grid = torch.arange(-2, 2, 0.001)
xg, yg = torch.meshgrid(grid, grid, indexing="ij")
grid = torch.cat((xg.reshape(-1)[:, None], yg.reshape(-1)[:, None]), dim=-1)
zg = target_distribution.log_prob(grid).exp().view(xg.shape)

fig, ax = plt.subplots()
ax.pcolormesh(xg, yg, zg, cmap="Oranges")
ax.set_xlim(-2.0, 2.0)
ax.set_ylim(-2.0, 2.0)
ax.axis("off")
scatter = ax.scatter([], [], color="black", alpha=0.6)


def animate(frame):
    scatter.set_offsets(logger.x[frame])
    return (scatter,)


animation = FuncAnimation(
    fig,
    animate,
    len(logger.x),
    interval=1000 / 60,
    blit=False,
)

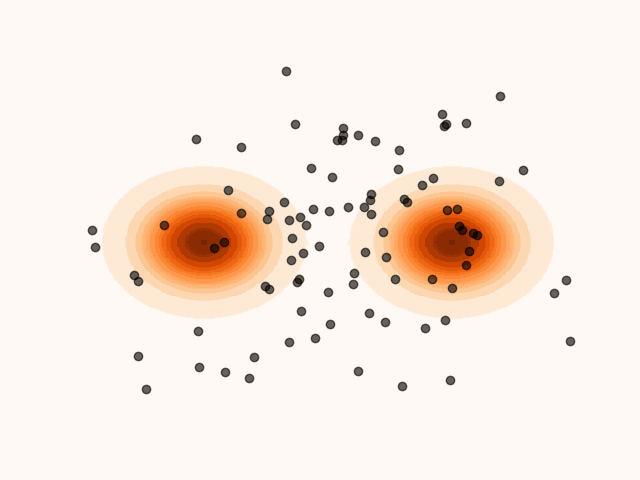

animation.save("particle_evolution.gif", fps=120)

A key property of SVGD is that the velocity field $\phi$ is chosen to maximally decrease the KL divergence between the particles distribution and the target. Intuitively, each update moves the particles in the direction that most closely makes their empirical distribution resemble the target distribution.

The RBF Kernel¶

The RBF kernel is defined as

where $\sigma$ is the kernel bandwidth.

Using the RBF kernel, the SVGD update rule becomes:

In the drift term, the kernel value $\kappa(x_i^l, x_j^l)$ determines how strongly the particle $x_i^l$ is influenced by the score $\nabla_{x_j^l} \log \bar p(x_j^l)$. This term moves particles toward regions of high probability. In the repulsion term, the same kernel value controls how far $x_i^l$ is pushed away from $x_j^l$ along the direction $(x_j^l - x_i^l)$. This term enforces diversity among particles, preventing them from collapsing onto a single mode.

The kernel takes its maximum value of 1 when $x_i^l = x_j^l$, and approaches 0 as $||x_i^l - x_j^l||^2 \to \infty$. Intuitively, $\kappa(x_i^l, x_j^l)$ measures similarity between particles based on Euclidean distance, with the effective neighborhood size controlled by $\sigma$.

import torch
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

torch.manual_seed(0)

bound = 10.0
x = torch.arange(-bound, bound, 0.1).unsqueeze(-1)

sigma = torch.tensor([0.5, 2.5, 5.0])
gamma = sigma.pow(2).mul(2).pow(-1)

norm = x.pow(2).sum(-1)
k = gamma.unsqueeze(-1).mul(norm).mul(-1).exp()
k_xj = gamma.mul(2).unsqueeze(-1).unsqueeze(-1).mul(k.unsqueeze(-1)).mul(x.mul(-1))

data = pd.DataFrame(
    [
        {
            "sigma": s.item(),
            "x": x[idx, 0].item(),
            "k": k[s_idx, idx].item(),
            "k_xj": k_xj[s_idx, idx, 0].item(),
        }
        for s_idx, s in enumerate(sigma)
        for idx in range(x.shape[0])
    ]
)

r, c = 1, 2
fig, ax = plt.subplots(r, c, figsize=(6.4 * c, 4.8 * r))

if c == 1:
    ax = np.array([ax])

if r == 1:
    ax = np.array([ax])

sns.lineplot(
    data,
    x="x",
    y="k",
    hue="sigma",
    ax=ax[0, 0],
    palette=sns.color_palette("tab10"),
)
ax[0, 0].grid()
ax[0, 0].set_ylabel("$\\kappa(0, x_j^l)$")
ax[0, 0].set_xlabel("$x_j^l$")

sns.lineplot(
    data,
    x="x",
    y="k_xj",
    hue="sigma",
    ax=ax[0, 1],
    palette=sns.color_palette("tab10"),
)
ax[0, 1].grid()
ax[0, 1].set_ylabel("$\\nabla_{x_j^l} \\kappa(0, x_j^l)$")
ax[0, 1].set_xlabel("$x_j^l$")

handles, labels = ax[0, 0].get_legend_handles_labels()
labels = [f"$\\sigma = {label}$" for label in labels]

ax[0, 0].legend_.remove()
ax[0, 1].legend_.remove()

legend = fig.legend(
    handles,
    labels,
    loc="lower center",
    bbox_to_anchor=(0.42, 0.7),
    framealpha=1.0,
)

fig.savefig("bandwidth.svg", bbox_inches="tight")

Choosing an appropriate value for $\sigma$ is nontrivial: both extremely small and extremely large bandwidths cause the repulsion term to vanish. A common heuristic is the median trick, which sets $\sigma = \mathrm{median} \{ ||x_i^l - x_j^l|| \}_{i,j=0}^{M-1} / \sqrt{2 \log M}$, where $M$ is the number of particles. This choice roughly ensures that $\sum_{j \neq i} \kappa(x_i^l, x_j^l) \approx 1$.

Derivation of the SVGD Update Rule¶

Suppose we wish to approximate a target distribution $p$ using particles $x \sim q^0$. The central idea of SVGD is to iteratively transport these particles using a smooth transformation

where $\phi$ is a velocity field chosen to maximally decrease the KL divergence to the target distribution.

Formally, SVGD seeks the direction

where $q^{\epsilon}$ denotes the distribution obtained by pushing $q^0$ through $f$, and $\mathcal{F}$ is a suitable function space.

Assuming $f$ is invertible, one can derive the first-order variation of the KL divergence as

The first term attracts particles toward regions of high probability density, while the second encourages volume expansion and prevents particle collapse.

To obtain a tractable optimization problem, SVGD restricts $\phi$ to a reproducing kernel Hilbert space (RKHS) $\mathcal{H}^D$ with kernel $\kappa(x, y)$. Using the reproducing property of the RKHS, the KL gradient can be expressed as

If we constrain $\|\phi\|_{\mathcal{H}^D} \leq 1$, the inner product is maximized when $\phi$ is proportional to the second argument. The optimal velocity field is therefore

For targets known only up to a normalization constant,

the score function satisfies

since the normalization constant vanishes under differentiation. Consequently, SVGD requires only the score of the unnormalized density and never needs to evaluate $Z$.
